带轴向冷却剂导管和出口的杆

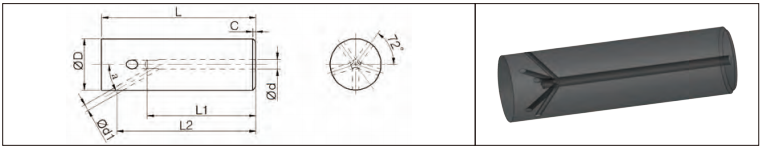

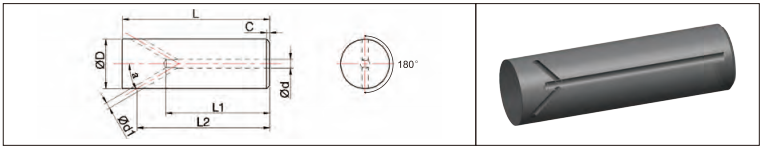

型号: RFM02 公制尺寸: 6mm至25mm直径h6公差项目编号 D h6 L d L2 d1 C L1 (mm) (mm) (mm) (mm) (mm) (mm) (mm ) RFM02-0600-0582-PG-A1.20-E0.80 6 58.2 1.2 55 0.8 0.6 54.6 RFM02-0800-0642-PG-A1.60-E1.10 8 64.2 1.6 60 1.1 0.6 59.1 RFM02-1000-0732-PG-A2.00-E1.40 10 73.2 2 68 1.4 0.6 66.6 RFM02-1200-0842-PG-A2.20-E1.60 12 84.2 2.2 78 1.6 0.8 76.1 RFM02-1400-0842-PG-A2.40-E1.70 14 84.2 2.4 77 1.7 0.8 74.7 RFM02-1600-0932-PG-A2.60-E1.90 16 93.2 2.6 85 1.9 0.8 82.2 RFM02-1800-0932-PG-A2.80-E2.00 18 93.2 2.8 84 2 1 80.7 RFM02-2000-1052-PG-A3.00-E2.10 20 105.2 3 95 2.1 1 91.2 RFM02-2500-1252-PG-A3.20-E2.30 25 125.2 3.2 112.5 2.3 1.5 107.5 型号: RFM03 公制尺寸: 6mm至25mm直径h6公差项目编号 D h6 L d L2 d1 C L1 (mm) (mm) (mm) ( mm) (mm) (mm) (mm) RFM03-0600-0582-PG-A1.20-E0.70 6 58.2 1.2 55 0.7 0.6 54.6 RFM03-0800-0642-PG-A1.60-E0.90 8 64.2 1.6 60 0.9 0.6 59.1 RFM03-1000-0732-PG-A2.00-E1.20 10 73.2 2 68 1.2 0.6 66.6 RFM03-1200-0842-PG-A2.20-E1.30 12 84.2 2.2 78 1.3 0.8 76.1 RFM03-1400-0842-PG-A2.40-E1.40 14 84.2 2.4 77 1.4 0.8 74.7 RFM03-1600-0932-PG-A2.60-E1.50 16 93.2 2.6 85 1.5 0.8 82.2 RFM03-1800-0932-PG-A2.80-E1.60 18 93.2 2.8 84 1.6 1 80.7 RFM03-2000-1052-PG-A3.00-E1.70 20 105.2 3 95 1.7 1 91.2 RFM03-2500-1252-PG-A3.20-E1.80 25 125.2 3.2 1125 1.8 1.5 1075 型号: RFM04 公制尺寸6mm至25mm直径h6公差项目编号 D h6 L d L2 d1 C L1 (mm) (mm) (mm) (mm) (mm) (mm) (mm) RFM04-0600-0582-PG-A1.20-E0.60 6.0 58.2 1.20 55.0 0.60 0.6 54.6 RFM04-0800-0642-PG-A1.60-E0.80 8.0 64.2 1.60 60.0 0.80 0.6 59.1 RFM04-1000-0732-PG-A2.00-E1.00 10.0 73.2 2.00 68.0 1.00 0.6 66.6 RFM04-1200-0842-PG-A2.20-E1.10 12.0 84.2 2.20 78.0 1.10 0.8 76.1 RFM04-1400-0842-PG-A2.40-E1.20 14.0 84.2 2.40 77.0 1.20 0.8 74.7 RFM04-1600-0932-PG-A2.60-E1.30 16.0 93.2 2.60 85.0 1.30 0.8 82.2 RFM04-1800-0932-PG-A2.80-E1.40 18.0 93.2 2.80 84.0 1.40 1.0 80.7 RFM04-2000-1052-PG-A3.00-E1.50 20.0 105.2 3.00 95.0 1.50 1.0 91.2 RFM04-2500-1252-PG-A3.20-E1.60 25.0 125.2 3.20 112.5 1.60 1.5 107.5 型号: RFM05 公制尺寸6mm至25mm直径h6公差项目编号 D h6 L d L2 d1 C L1 (mm) (mm) (mm) ( mm) (mm) (mm) (mm) RFM05-0600-0582-PG-A1.20-E0.50 6.0 58.2 1.20 55.0 0.50 0.6 54.6 RFM05-0800-0642-PG-A1.60-E0.70 8.0 64.2 1.60 60.0 0.70 0.6 59.1 RFM05-1000-0732-PG-A2.00-E0.90 10.0 73.2 2.00 68.0 0.90 0.6 66.6 RFM05-1200-0842-PG-A2.20-E1.00 12.0 84.2 2.20 78.0 1.00 0.8 76.1 RFM05-1400-0842-PG-A2.40-E1.10 14.0 84.2 2.40 77.0 1.10 0.8 74.7 RFM05-1600-0932-PG-A2.60-E1.20 16.0 93.2 2.60 85.0 1.20 0.8 82.2 RFM05-1800-0932-PG-A2.80-E1.30 18.0 93.2 2.80 84.0 1.30 1.0 80.7 RFM05-2000-1052-PG-A3.00-E1.40 20.0 105.2 3.00 95.0 1.40 1.0 91.2 RFM05-2500-1252-PG-A3.20-E1.50 25.0 125.2 3.20 112.5 1.50 1.5 107.5

特殊铣刀毛坯 (公制)

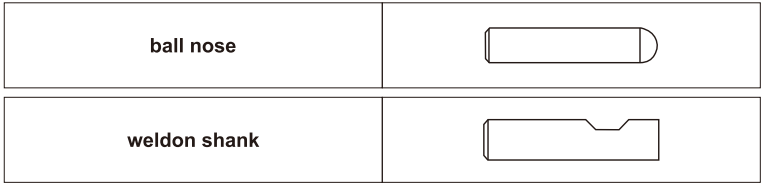

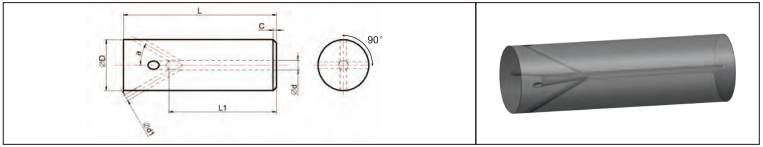

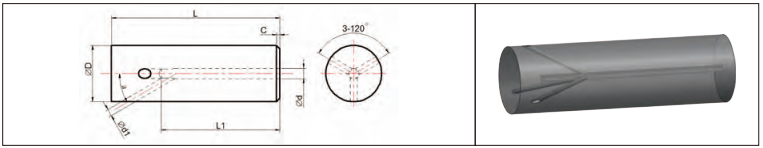

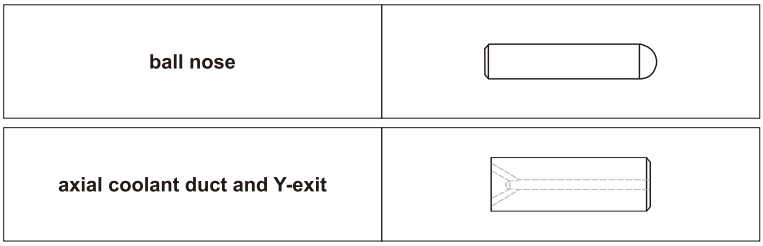

外径公差长度公差倒角×45° 公差±0.1 球头带WELDON槽带轴向冷却孔和Y型分流孔 6.0 h6/h5 51 0/+ 1%长度，最小值+ 0.5mm 0.4 6.0 h6/h5 55 0.4 6.0 h6/h5 58 0.4 8.0 h6/h5 59 0.6 8.0 h6/h5 64 0.6 10.0 h6/h5 67 0.6 10.0 h6/h5 73 0.6 12.0 h6/h5 74 0.8 12.0 h6/h5 84 0.8 14.0 h6/h5 76 0.8 14.0 h6/h5 84 0.8 16.0 h6/h5 83 0.8 16.0 h6/h5 93 0.8 18.0 h6/h5 93 1.0 18.0 h6/h5 93 1.0 20.0 h6/h5 105 1.0 25.0 h6/h5 123 2.0 ● 以上数据为典型参数 <td valign="top "> ol. 托尔。 vA5 托尔。± 0.004 3a 轴向冷却液导管 and-出口/侧出口 h6/h5 0/+ 1% 的长度 + 0.02" 0.024 0.024 16 0.024 0.024 3/8 2.5 0.024 0.024 3/8 0.02 7/16 2.75 0.031 /2 0.031 /2 0.031 5/8 3.5 0.031 3/4 0.039 1 0.039 ● 以上数据为典型参数
