我们的硬质合金刨槽机毛坯是建立在木工和其他材料切削应用提供卓越的性能。这些毛坯具有高耐磨性和精确的尺寸精度，非常适合生产高质量的router刀，可在各种材料中进行清洁高效的切割。
| 等级 | 粘结剂 % | 晶粒尺寸 | 密度 | 硬度 | T.R.S | KIC | 美国代码 | ISO代码 | |
| 克/厘米3 | HRA | HV10 | N/mm2 | Mpa.m1/2 | |||||
| UH5 | 3.0 | 超细 | 15.15 | 94.3 | 2120 | 2600 | 6.9 | C4 | K01 |
| MH3 | 3.3 | 超细 | 15.1 | 94.6 | 2175 | 2400 | 6.9 | C4 | K01 |
| MH5 | 4.8 | 亚微米 | 14.95 | 94.1 | 2070 | 2400 | 7.4 | C4 | K05 |
| MH6 | 5.0 | 亚微米 | 14.95 | 93.6 | 1950 | 2800 | 8.5 | C3 | K10 |
| CK10X | 6.0 | 中等精细 | 14.9 | 91.3 | 1530 | 2100 | 11.8 | C3 | K10 |
| CK20 | 8.0 | 中等精细 | 14.7 | 90.2 | 1390 | 2500 | 14 | C2 | K20 |
| 等级 | 刨花板 | MDF和HDF | 实木 | 软木 |
| UH5 | ★★★★ | ★★★★ | ||
| MH3 | ★★★★ | ★★★★ | ||
| MH5 | ★★★ | ★★★ | ||
| MH6 | ★★★ | ★★ | ★★★★ | |
| CF10 | ★★★ | ★★★★ | ||
| CK10 | ★★ | ★★★ |
★中等
★★OK
★★★很好
★★★★优秀

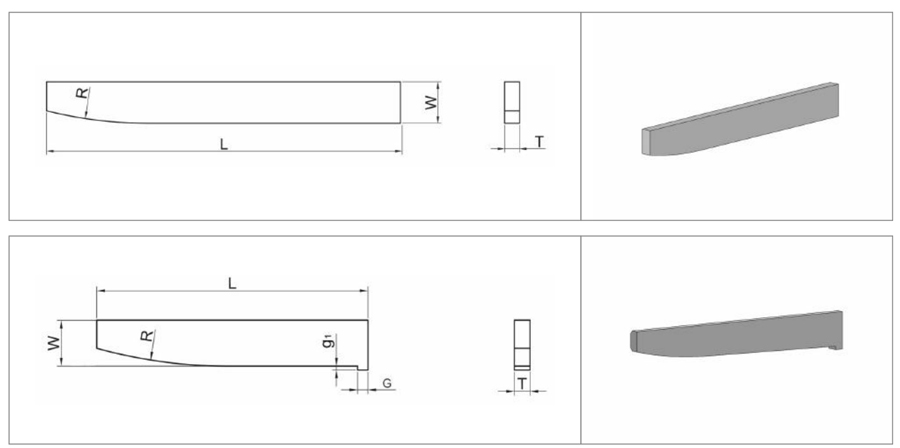

| 类型 | L | W | 右 | ||||
| mm | mm | mm | |||||
| TX2.1X20.2-R32 | 20.2 | 2.1 | 32.0 | ||||
| TX2.5X20.3-R32 | 20.3 | 2.5 | 32.0 | ||||
| TX3.0X20.5-R32 | 20.5 | 3.0 | 32.0 | ||||
| TX3.3X25-R32 | 25.0 | 3.3 | 32.0 | ||||
| TX3.0X30-R37.5 | 30.0 | 3.0 | 37.5 | ||||
| TX3.0X30.5-R32 | 30.5 | 3.0 | 32.0 | ||||
| TX4.0X30.5-R31.5 | 30.5 | 4.0 | 31.5 | ||||
| TX5.3X30.5-R31.5 | 30.5 | 5.3 | 31.5 | ||||
| TX8.0X30.5-R31.5 | 30.5 | 8.0 | 31.5 | ||||
| TX3.35X31-R32 | 31.0 | 3.4 | 32.0 | ||||
| TX4.0X31-R31.5 | 31.0 | 4.0 | 31.5 | ||||
| TX4.3X31-R31.5 | 31.0 | 4.3 | 31.5 | ||||
| TX5.0X31-R37.5 | 31.0 | 5.0 | 37.5 | ||||
| TX5.5X31-R37.5 | 31.0 | 5.5 | 37.5 | ||||
| TX6X31-R37.5 | 31.0 | 6.0 | 37.5 | ||||
| TX7.0X31-R37 | 31.0 | 7.0 | 37.0 | TX8.0X31-R37 | 31.0 | 8.0 | 37.0 |
| TX3.5X35.5-R37.5 | 35.5 | 3.5 | 37.5 | ||||
| TX4.3X38.1-R31.5 | 38.1 | 4.3 | 31.5 | ||||
| TX3.4X38.2-R32 | 38.2 | 3.4 | 32.0 | ||||
| TX3.2X38.5-R37 | 38.5 | 3.2 | 37.0 | ||||
| TX4.0X50.8-R37.5 | 50.8 | 4.0 | 37.5 | ||||
| TX4.2X63.5-R32 | 63.5 | 4.2 | 32.0 | ||||
| TX4.3X76.2-R32 | 76.2 | 4.3 | 32.0 |
| 类型 | L | W | 右 | GXg1 |
| mm | mm | mm | mm | |
| TX2.7X20.8-R37.5-G | 20.8 | 2.7 | 37.5 | 0.8X0.3 |
| TX3.5X20.8-R37.5-G | 20.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX3.0X21.8-R37.5-G | 21.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX2.7X22.8-R37.5-G | 22.8 | 2.7 | 37.5 | 0.8X0.3 |
| TX3.0X25.8-R37.5-G | 25.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.5X25.8-R37.5-G | 25.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX3.8X26-R37.5-G | 26.0 | 3.8 | 37.5 | 1.6X0.3 |
| TX3.0X27.8-R37.5-G | 27.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.0X30.8-R37.5-G | 30.8 | 3.0 | 37.5 | 0.8X0.3 |
| TX3.5X30.8-R37.5-G | 30.8 | 3.5 | 37.5 | 0.8X0.3 |
| TX4.5X30.8-R37.5-G | 30.8 | 4.5 | 37.5 | 0.8X0.3 |
| TX4.3X39-R37.5-G | 39.0 | 4.3 | 37.5 | 1.5X0.3 |
| TX4.3X51.5-R37.5-G | 51.5 | 4.3 | 37.5 | 1.5X0.3 |
